How to Wire a Light Switch: A Step-by-Step Guide
Introduction
Wiring a light switch is a common DIY project that can help you save money and add functionality to your home. Whether you want to install a new light switch or replace an old one, this step-by-step guide will walk you through the process. As an expert electrician, I have installed and repaired countless light switches, and I am happy to share my knowledge with you.
Wiring a light switch is a fundamental skill that can empower homeowners to handle basic electrical tasks and make adjustments to their lighting setup. Whether you’re replacing an old switch, installing a new one, or troubleshooting an existing switch, understanding the process of wiring a light switch can provide you with the confidence and knowledge needed to complete the task safely and effectively. By following a few simple steps and taking necessary precautions, you can successfully wire a light switch and have control over your home’s lighting.
Before embarking on any electrical project, it’s crucial to prioritize safety. Ensure that the power to the circuit you’ll be working on is turned off at the circuit breaker or fuse box. Use a voltage tester to confirm that there is no electrical current flowing to the switch. Safety should always be the top priority when working with electrical systems.
The basic components involved in wiring a light switch are the switch itself, a power source, and the light fixture. The switch acts as a control to turn the light on or off. The power source is typically the electrical circuit that supplies electricity to the switch, while the light fixture is the endpoint that receives power when the switch is turned on. Understanding the different parts and their functions will help you navigate the wiring process.
Gather the Tools and Materials
Before you begin, it’s important to gather the necessary tools and materials. You will need a screwdriver, wire stripper, electrical tape, and a voltage tester. Additionally, you will need a new light switch and enough electrical wire to reach the switch from the power source and the light fixture. For safety reasons, it’s best to turn off the power to the circuit at the breaker box before you begin.
Tools You Will Need:
- Screwdriver
- Wire stripper
- Electrical tape
- Voltage tester
Materials You Will Need:
- New light switch
- Electrical wire
Turn Off the Power
Before you start wiring the light switch, turn off the power to the circuit at the breaker box. This will prevent any electrical accidents from occurring while you work. Use a voltage tester to ensure that the power is off before you begin.
Tip:
Make sure to mark the circuit breaker that controls the light switch so you can easily find it in the future.
Remove the Old Switch
If you are replacing an old light switch, use a screwdriver to remove the switch plate and switch from the wall. Be careful not to touch any wires until you have tested them with a voltage tester to ensure the power is off. Once you have confirmed that the power is off, remove the wires from the old switch.
Tip:
Take a photo or make a note of how the wires were connected to the old switch so you can connect them correctly to the new switch.

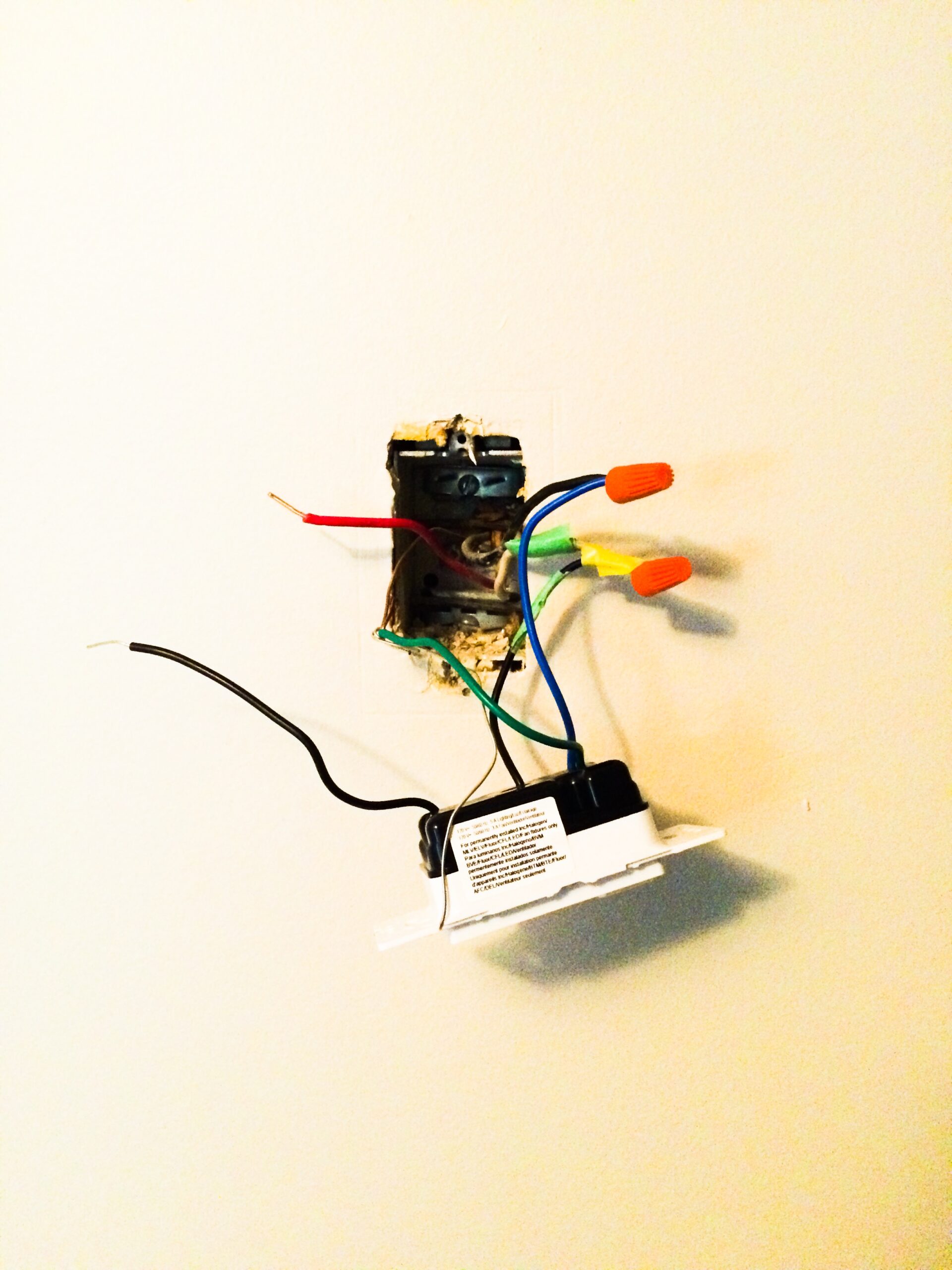

Connect the Wires to the New Switch
Using your wire stripper, strip the ends of the wires and connect them to the new switch. Typically, you will need to connect the black or red wire to the black or red screw on the switch, and the white wire to the silver screw. The ground wire, if present, should be connected to the green screw. Make sure to wrap the connections with electrical tape to prevent any exposed wires. Make sure you understand which wires are the Hot, Ground, and Neutral wires.
Tip:
Make sure the wire connections are tight and secure, and that there are no exposed wires.
Attach the Switch to the Wall
Once the wires are connected to the new switch, carefully tuck them back into the wall box and attach the switch to the box with the screws provided. Then, attach the switch plate back onto the wall.
Tip:
Make sure the switch is level and flush against the wall, and that the switch plate is secure.
Turn the Power Back On
After you have attached the switch to the wall, turn the power back on at the circuit breaker box. Test the switch to make sure it is functioning properly. If the light switch is not working, turn off the power and check the wire connections to ensure they are correct and secure.
Tip:
If the light switch is still not working, it may be a problem with the wiring in the circuit, and you may need to consult an electrician.
Conclusion
Wiring a light switch may seem like a daunting task, but it can be done with the right tools, materials, and knowledge. By following this step-by-step guide, you can wire a light switch like a pro. However, if you are unsure about any step of the process, or if you encounter any issues, it’s always best to consult a licensed electrician to ensure your safety and the proper functioning of your electrical system.
Recap:
- Gather the tools and materials
- Turn off the power
- Remove the old switch
- Connect the wires to the new switch
- Attach the switch to the wall
- Turn the power back on and test the switch
Final Thoughts
Wiring a light switch is a useful skill that can save you money and enhance the functionality of your home. However, it’s important to approach this task with caution and the proper knowledge. By following this step-by-step guide and taking necessary safety precautions, you can successfully wire a light switch and enjoy the benefits of a well-lit home.
